Elements

The elements in this section are only available in Filter attribute return object array. The behavior differs a bit from other elements in animation views, and only the filter context object is available. The filter objects are executed in client side only. if interaction with server side is needed, use the context object described in chapter Context.

Date Element

Description

The Date element is used for displaying dates. It is a date picker with possibility of altering the UI and the range depending on current resolution. Each time a new date, month or year is picked, the eventcode onChanged is triggered.

Resolutions

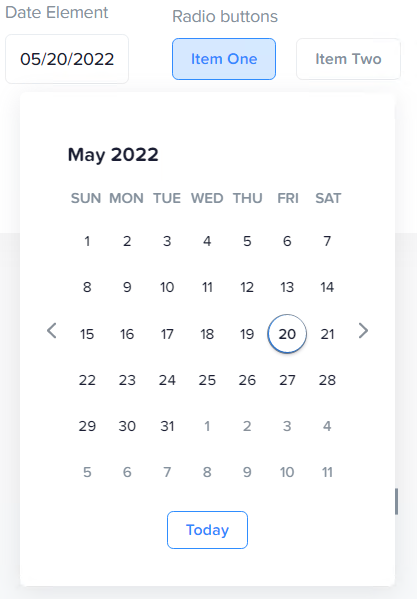

Day

Set resolution to day to get the day view.

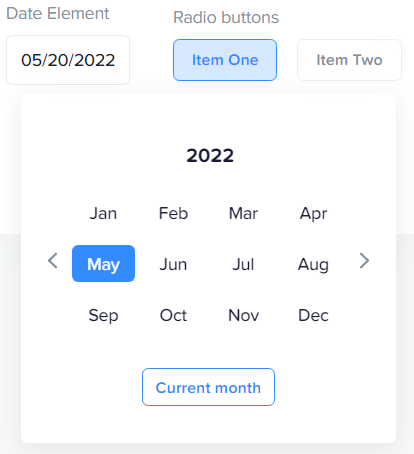

Month

Set resolution to month to get the month view.

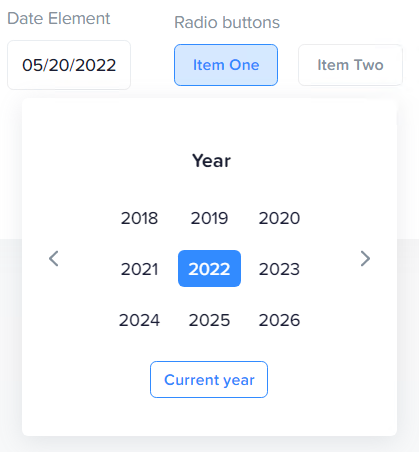

Year

Set resolution to year to get the year view.

Attributes

Date element attributes

Name	Type	Description	Default
type	string	sets the elements type	"Date"
name	string	the name of the element	mandatory
title	string	the user label of the element	name
userDescription	string	the user description of the element	name
value	string	the current value of the element	mandatory
visible	bool	element visibility	true
enabled	bool	if item is active/selectable	true
resolution	string	the current resolution, valid values are hour,day,month,year	mandatory
onChanged	function	function with currentConfig as parameter
group	string	number	groups with other element with same group identifier

Button Element

Description

The Button renders as a plain button. If button is pressed, the onClicked eventCode is executed.

Attributes

Name	Type	Description	Default
type	string	sets the elements type	"Date"
name	string	the name of the element	mandatory
title	string	the user title of the element	name
text	string	the user label of the element	name
value	string	the current value of the element	mandatory
visible	bool	element visibility	true
enabled	bool	if item is active/selectable	true
onClicked	function	function with currentConfig as parameter
group	string	number	groups with other element with same group identifier

Toggler Element

Description

The Toggler is a state switch. It indicates inactive and active state. It has a title. When switch is clicked, the onChanged eventCode is executed.

Attributes

Name	Type	Description	Default
type	string	sets the elements type	"Date"
name	string	the name of the element	mandatory
title	string	the user label of the element	name
value	string	the current value of the element	mandatory
visible	bool	element visibility	true
enabled	bool	if item is active/selectable	true
onChanged	function	function with currentConfig as parameter
group	string	number	groups with other element with same group identifier

Select Element

Description

The Select element is a select box. It is used for selecting between one of multiple choises. When a new item is selected the onChanged eventCode is executed.

Attributes

Name	Type	Description	Default
type	string	sets the elements type	"Date"
name	string	the name of the element	mandatory
title	string	the user label of the element	name
value	string	the current value of the element	mandatory
visible	bool	element visibility	true
enabled	bool	if item is active/selectable	true
onChanged	function	function with currentConfig as parameter
data	array	Array of item objects, see below	empty array
group	string	number	groups with other element with same group identifier

Radio

Description

The Radio element is an array of buttons. It can be configured, via the multi attribute set to true, to allow toggling of multiple buttons in the array to be active at the same time. This can be useful when combining settings, or multiselect of ranges is needed. Each time a button is pressed the onClicked eventCode is executed.

multi:false

Each activation of a new button deselects all other buttons in the array.

Note

The value of this element is always an array of values, even if the multi attribute is set to false. To get the value of the element if multi is false, it is available by indexing the value:

    // assume radio array is first element in array of filter elements
    const radioBtn = currentConfig[0];
    //get the value.
    const value = radioBtn.value[0];

If the array is empty, no buttons are active.

multi:true

Button state is independent of each other and are toggled independently.

Name	Type	Description	Default
type	string	sets the elements type	"Date"
name	string	the name of the element	mandatory
title	string	the user label of the element	name
value	array of values	the current array of item values of the element	mandatory
multi	bool	allow multi on/off state	mandatory
visible	bool	element visibility	true
enabled	bool	if item is active/selectable	true
onClicked	function	function with currentConfig as parameter
data	array	Array of item objects, see below	empty array
group	string	number	groups with other element with same group identifier

Select and Radio element data Items

Name	Type	Description	Default
title	string	The title of item	mandatory
value	string | number | null	The value of item	mandatory
visible	bool	item visibility	true
enabled	bool	if item is active/selectable	true
group	string	number	groups with other element with same group identifier

Grouping elements

All elements with the same group identifier (for example "group1") is grouped and can share the same filter row (if space exists). The index for the group with the first found group element index.
